Specifications :

Firmware: V1.4 or above (firmware update via Flipsky ESC Tool supported)
Voltage: 14-84V (safe for 4S-20S)
Continuous Current: 100A / Single; 200A / Dual (values depend on the mounting and ambient temperature around the device!)
Peak Current: 250A / Single; 500A / Dual

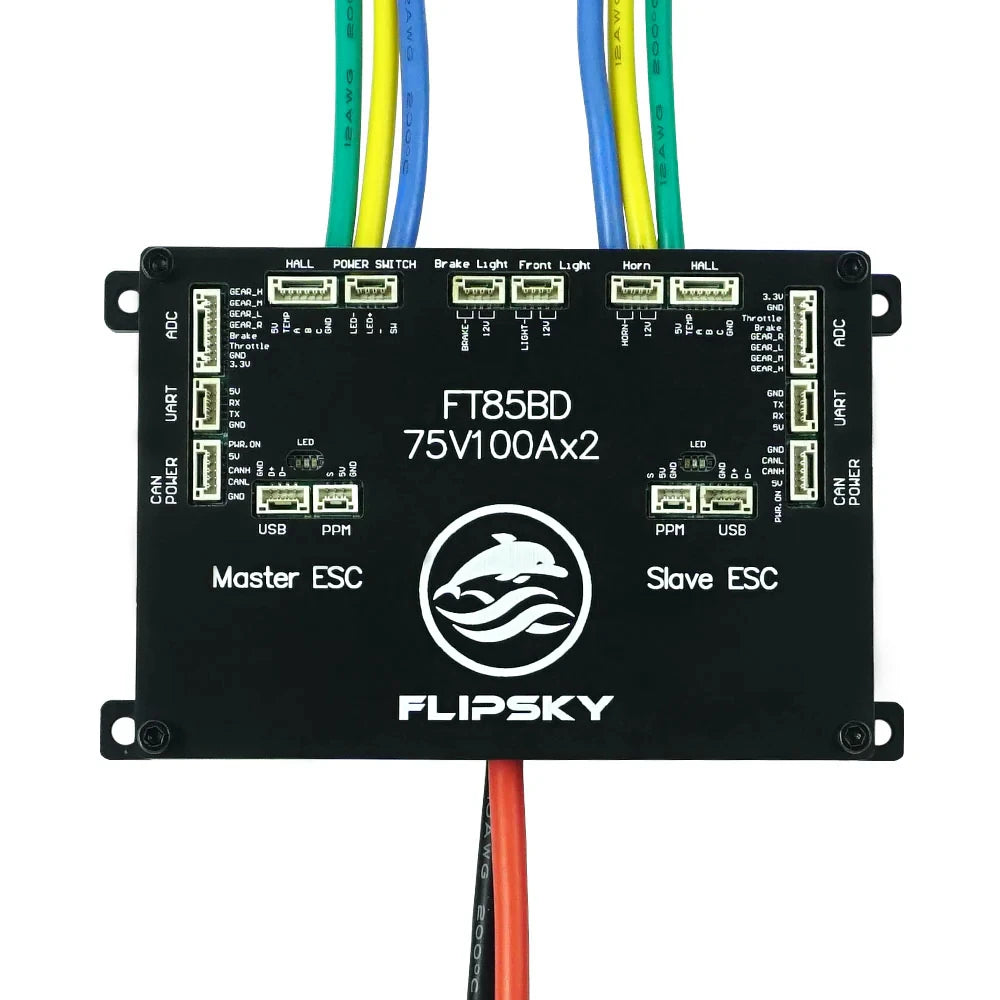

Communication Ports: USB, CAN, UART, PPM, ADC
Input Signals Support: PPM, ADC, UART (compatible with FLIPSKY remote VX4 and VX3Pro only at present), PAS
Startup Modes Support: IPDS (sensorless), HFPI (sensorless), HALL (sensored), Encoder (ABI, AS5047 encoder SPI interface)
Multiple Speed Gear levels: Low, Medium, High, Reverse
Front Lights, Rear Brake Lights & Horn: Support
Programmable: Yes
Regenerative Capacity: Yes
Slide Poweron & Auto shutdown: Yes
Self-resetting switch with green LED button Diameter: 16mm
Power Wire Size: 10AWG; Motor Wire Size: 12 AWG

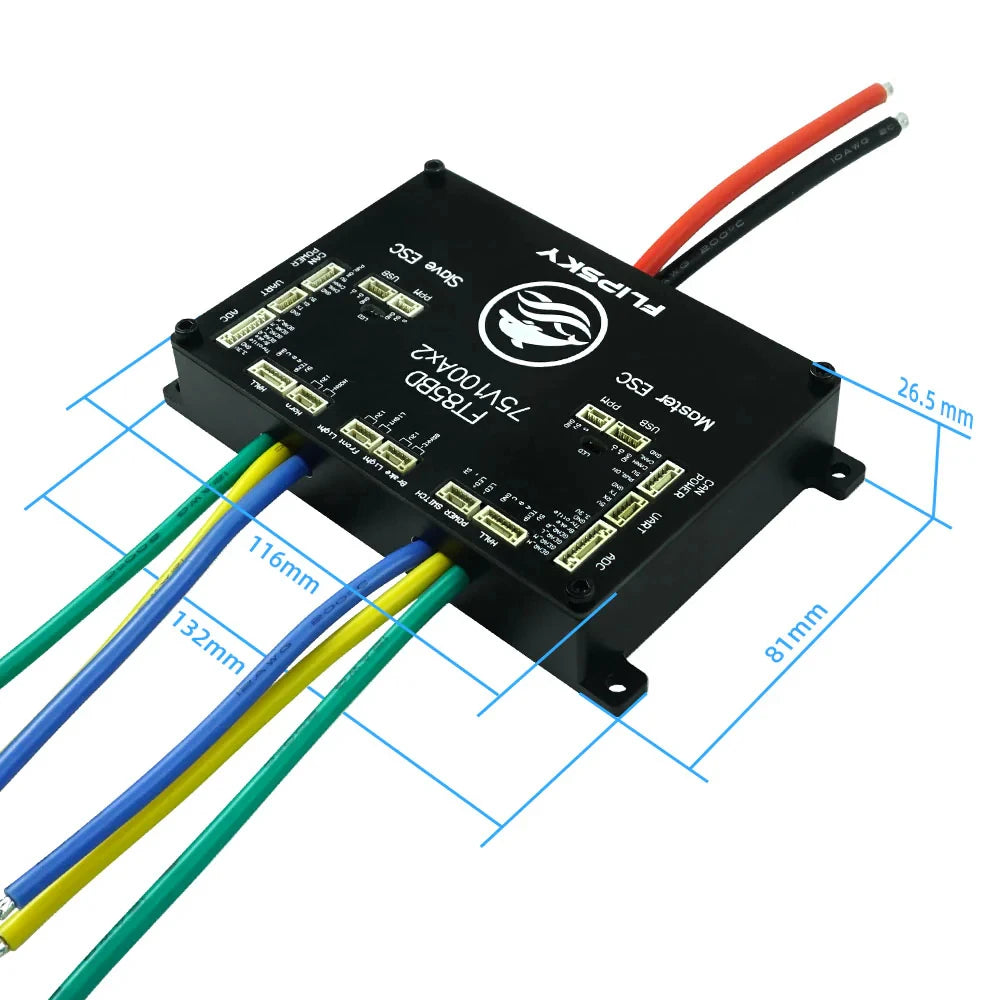

Size: L132*W81*H26.5mm(Including Alu. Case)

Features:

Adopting CPU AT32F403ARCT7 with the structure of ARM Cortex-M4 allows CPU clock speed.
240MHz and the max PWM switching frequency 45KHz improves the motor RPM.
Programmable via Flipsky ESC Tool to be compatible with multi-types of motor, different battery voltages and many control ways.
Programmable via Flipsky remote controller VX4 (remote firmware version: VX4_V1.2.1 or above).
Supporting motor FOC with low working noise and smooth starting.
Supporting Real-time data and fault alerts.
Supporting adaptive variable PWM frequency control.
Supporting sensor mode(HALL) and sensorless mode(IPDS, HFPI).
Supporting control types: Current, Duty Cycle
Protection functions: low and high voltage protection, over-current protection, temperature abnormally protection, mosfets over-temperature and over current protection, battery over discharge protecting, motor over-temperature protection.
Integrated smart switch function: supports sliding poweron and automatic shutdown function; automatic shutdown time is adjustable via ESC TOOL.

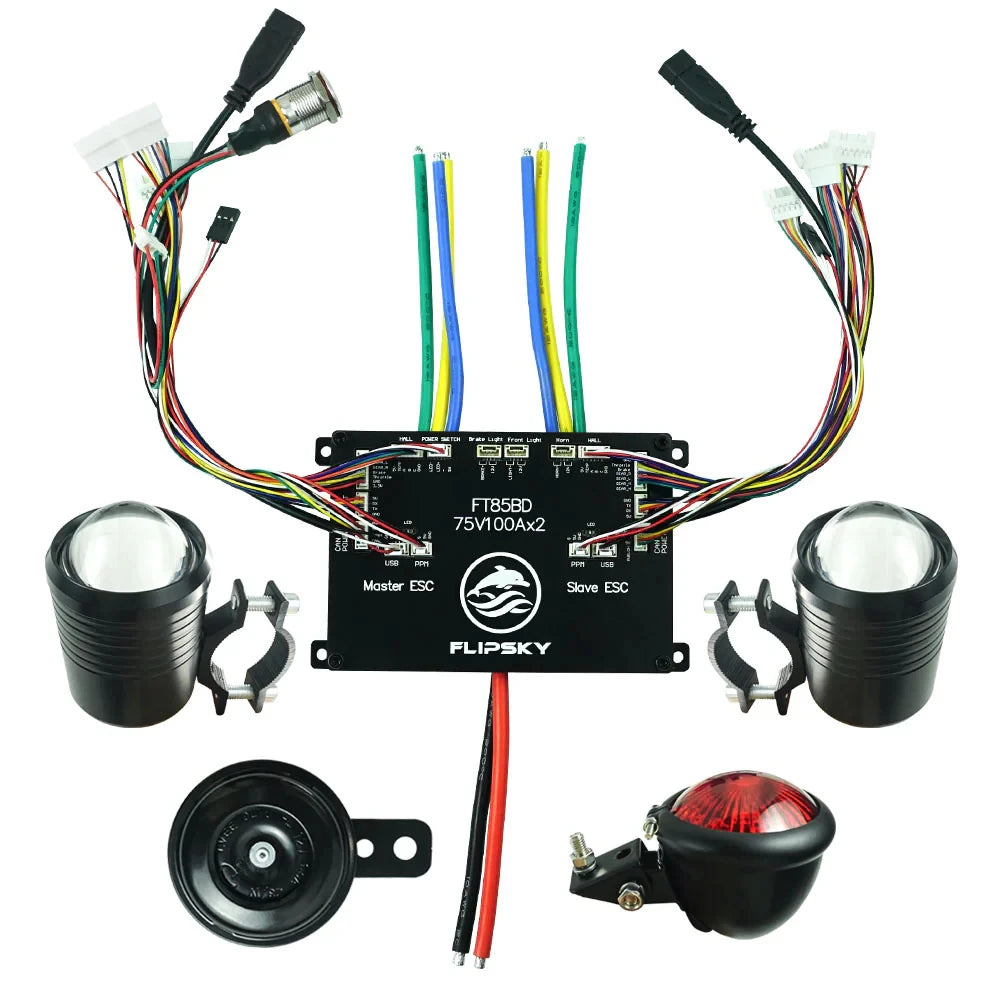

Supporting extra interface like front lights, rear brake lights and horn fixtures.
